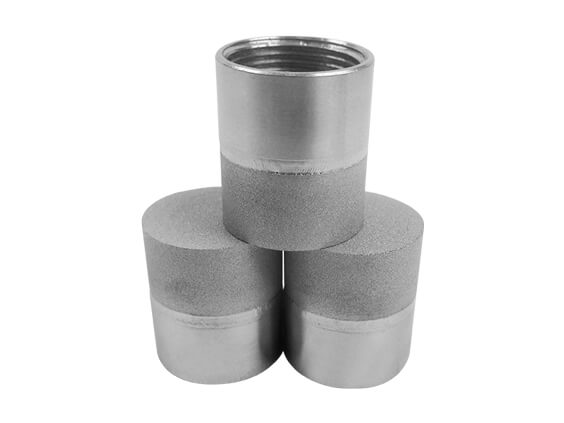

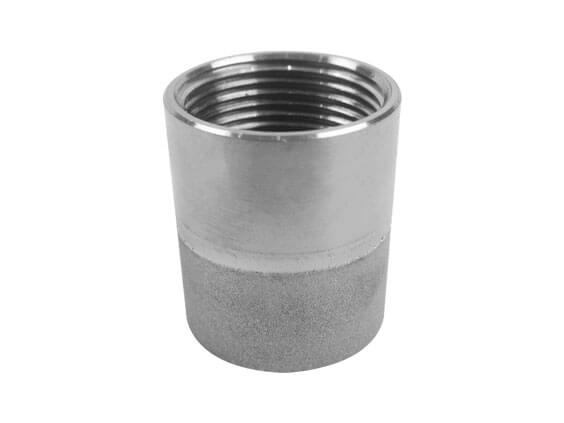

Titanium Sintered Filter Element Huahang Filter

Description:

The titanium material used in this filter element has strong corrosion resistance and oxidation resistance, ensuring durability and reliability. The sintering technology used to manufacture the filter element ensures uniform pore size, resulting in consistent filtration performance.

Specifications:

Type	Sintered Powder Filter Element
Filter layer	Titanium
Dimension	Customized
Interface	M16 Inner tread
Package	Neutral

Installation Methods:

1. When installing the plug-in filter element, immerse the O-ring into clean parallel filtrate to reduce friction during insertion. Require to insert it all the way through, with both O-rings providing a sealing effect.

2. When installing the snap on filter element, it is necessary to rotate clockwise for positioning.

3. If the filter has a pressure plate, press the pressure plate onto the warped part and gently press the spring on the pressure plate. If the spring is too tight, there will be no room for the filter element to extend, which will cause distortion and affect the filtration accuracy.

4. When filtering liquids, first turn on the exhaust switch on the casing to empty the gas inside the filter cartridge and fill it with liquid, otherwise it will affect circulation.

5. Fluid filters will experience pressure drop due to resistance. To overcome resistance, it must have sufficient working pressure. To avoid the impact of high flow on the filter element, the valve should be slowly opened.

FAQ：

Q1： What are the advantages of internally threaded titanium sintered filter compared to other filter cartridges?

A 1: The internally threaded titanium sintered filter element has the characteristics of high filtration accuracy, high strength, and good temperature and corrosion resistance. Compared to traditional filtering materials, it has a longer lifespan and is more cost-effective.

Q2： Can internal threaded titanium sintered filter cartridges be customized?

A 2: Yes, the shape, size, and filtering accuracy can be customized according to the specific application requirements of the customer.

Q3： What is the working temperature and pressure range of the internally threaded titanium sintered filter element?

A 3: Under normal conditions, the working temperature range of the internally threaded titanium sintered filter element is -200 ° C to 1000 ° C. It can withstand a maximum pressure of 6 MPa.
