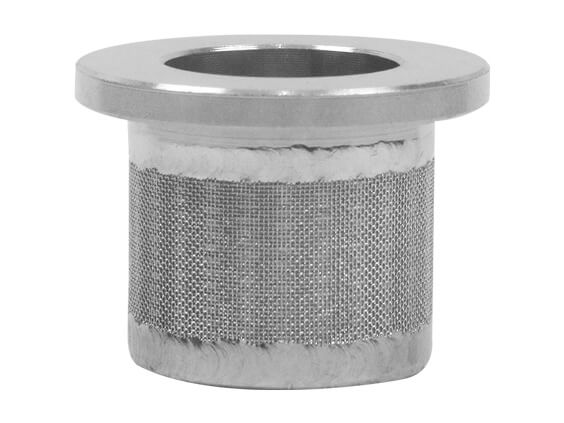

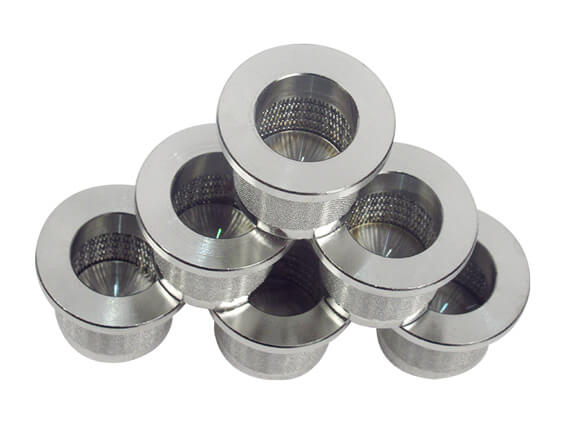

Customized Sintered Mesh Filter Element 23x16.5

Type: Sintered Mesh Filter Element
Material: Metal mesh
OD: 23 mm
Height: 16.5 mm
Filtration efficiency: 99.99%
Description:

Compared with traditional filter media, the sintered mesh structure of this filter element has multiple advantages. It provides a larger filtration area, thereby achieving greater particle retention and improving filtration efficiency. In addition, sintered mesh materials are easy to clean and corrosion-resistant, ensuring consistent performance even under harsh working conditions.

Specifications:
>
Type Sintered Mesh Filter Element
Filter layer Metal mesh
Dimension 23x16.5
Filtration efficiency 99.99%
Origin Henan,China
Package Neutral
Production process:

Choosing the appropriate material: The material selection of sintered mesh filter has a direct impact on its service life and filtration effect. The stainless steel multi-layer wire mesh powder sintering technology is not only corrosion-resistant, but also effectively intercepts small particles to ensure air quality.

Filter precision selection: When customizing filter cartridges, the appropriate filter precision should be selected according to the specific working environment. If the precision of the filter element is selected too high or the pressure exceeds its maximum allowable working pressure, it may cause the filter element to be flattened.

Installation requirements: The installation of the filter element must be accurate and stable. If the filter element is not fixed properly before starting to filter, it may cause damage to the filter element. In addition, attention should be paid to the direction and position of the filter element during installation to ensure that it can work properly and is not easily damaged.

Regular cleaning and replacement: After prolonged use, the filter element will trap a large amount of impurities, resulting in a decrease in working speed. Therefore, it is necessary to regularly clean the filter element and be careful not to deform or damage it, otherwise it will lead to a decrease in filtration accuracy. Some precision filter cartridges cannot be reused multiple times and require special attention
Feature:

High mechanical strength and pressure resistance: The flange interface sintered mesh filter is made of multi-layer stainless steel wire mesh sintered, which has extremely high mechanical strength and pressure resistance, and can work stably in high-pressure environments.

High filtration accuracy: Its filtration accuracy range is wide, usually 0.5-200 μ m, which can meet the strict requirements of liquid or gas filtration accuracy in different fields. The multi-layer structure enables the filter element to achieve high-precision filtration, with a wide range of filtration accuracies from micrometer to submicron.

Excellent heat resistance: The sintered mesh filter can be used in continuous filtration environments ranging from -200 ℃ to 650 ℃ without any performance changes or damage, making it significantly advantageous in the field of high-temperature filtration.

Strong corrosion resistance: Commonly used materials such as 316L stainless steel and Hastelloy have extremely high corrosion resistance and are suitable for various corrosive media. Further improve corrosion resistance through surface treatment techniques such as passivation treatment
