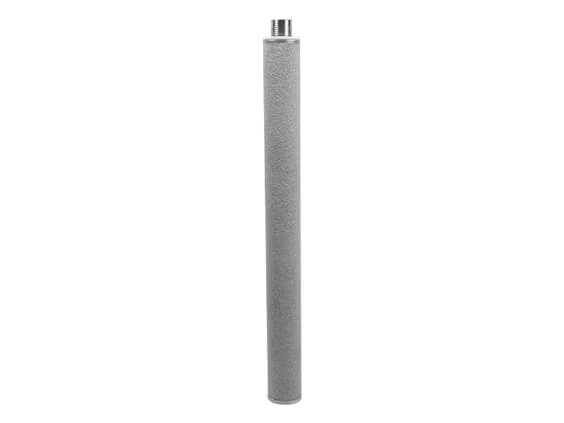

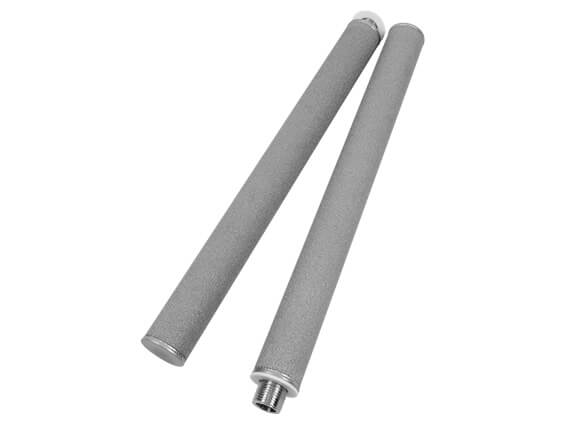

300 Mesh Stainless Steel Sintered Powder Filter Element,SS Sintered Filter Element,Sintered Powder Filter Element

Description:

The 300 mesh means it has fine mesh holes that enable efficient particle filtration. The sintering powder process used in its production ensures uniform porosity and stable structure, giving it strong pressure and high temperature resistance, making it very suitable for use in harsh environments.

Specifications:

Type	Sintered Powder Filter Element
Filter layer	Stainless steel
Dimension	50x525
Filtration efficiency	99.8%
Package	Neutral

Advantages:

High porosity and permeability: Stainless steel powder sintered filter cartridges have high porosity and permeability, resulting in less pressure loss and higher flow rate.

High filtration accuracy: It has high filtration accuracy, large pollutant holding capacity, slow rise of pressure drop curve during use, and long replacement cycle.

Excellent temperature and corrosion resistance: able to be used for a long time at 600 ℃, and resistant to corrosion from nitric acid, alkali, organic solvents, and drugs.

High mechanical strength: After sintering, the five layer wire mesh has extremely high mechanical strength and compressive strength.

Good cleaning and regeneration performance: Due to its special surface filtration structure, it is easy to clean and can be used multiple times

Main Parameter:

Filtration accuracy: The filtration accuracy range of stainless steel powder sintered filter cartridge is 0.1-2000 microns.

High temperature resistance: The maximum working temperature can reach 816 ℃, and it can withstand a high temperature of 480 ℃ without gaskets.

Corrosion resistance: Suitable for various acidic and alkaline environments, with excellent corrosion resistance.

Mechanical strength: It has extremely high mechanical strength and compressive strength.

Materials: Commonly used materials include stainless steel powder, bronze powder, nickel powder, titanium powder, high-temperature alloy powder, etc. Other materials can be customized according to customer needs.

Specification: The diameter, length, and thickness of the filter element can be customized according to the specific needs of the user
