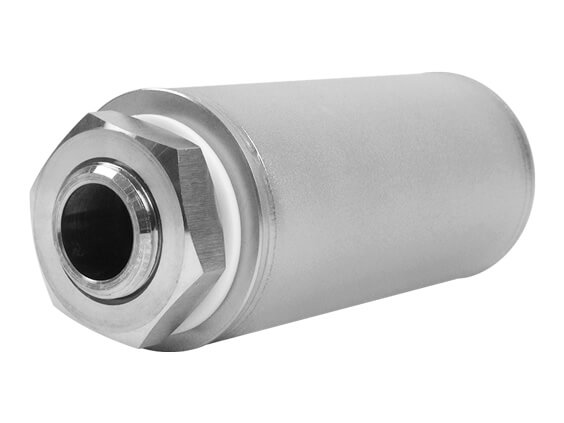

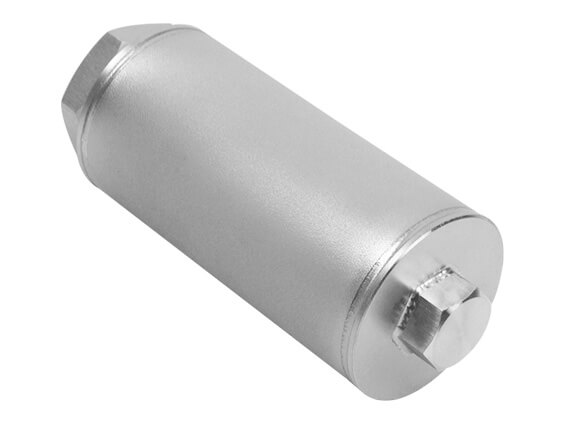

1μm Stainless Steel Sintered Powder Filter Element,SS Sintered Powder Filter Element,Sintered Filter Element

Description:

The sintering process used in the manufacturing of this filter element can form a high-density, uniform structure, providing excellent mechanical strength and durability. Therefore, the filter element can withstand high-pressure applications and maintain its filtration efficiency for a long time, making it an economical, efficient, and reliable filtration solution.

Specifications:

Type	Sintered Powder Filter Element
Filter layer	316L
Dimension	Customized
Filtration efficiency	99.8%
Package	Neutral

Installation Methods:

1. When installing the plug-in filter element, immerse the O-ring into clean parallel filtrate to reduce friction during insertion. Require to insert it all the way through, with both O-rings providing a sealing effect.

2. When installing the snap on filter element, it is necessary to rotate clockwise for positioning.

3. If the filter has a pressure plate, press the pressure plate onto the warped part and gently press the spring on the pressure plate. If the spring is too tight, there will be no room for the filter element to extend, which will cause distortion and affect the filtration accuracy.

4. When filtering liquids, first turn on the exhaust switch on the casing to empty the gas inside the filter cartridge and fill it with liquid, otherwise it will affect circulation.

5. Fluid filters will experience pressure drop due to resistance. To overcome resistance, it must have sufficient working pressure. To avoid the impact of high flow on the filter element, the valve should be slowly opened.
