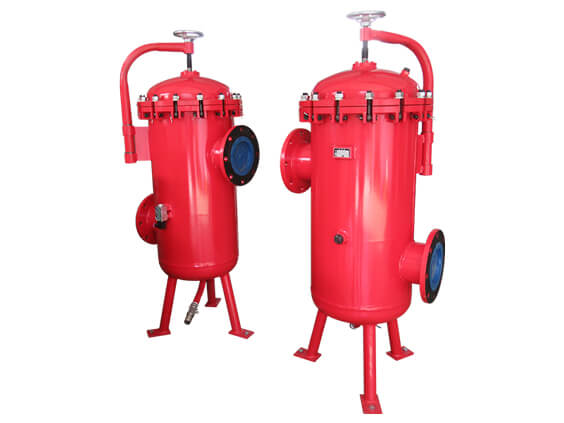

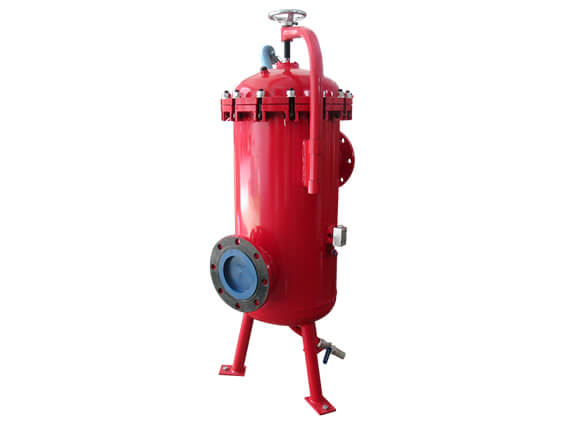

Large Flow Rate Return Line Filter DRLF-A2600x30P,Return Line Filter,DRLF Series Large Flow Rate Return Line Oil Filter

Description:

The element of this series is made of fiberglass;it has high efficiency and filtration,large dirt capacity and lower initial pressure drop.There is a by-pass valve and a contamination indicator.It can remove all the contaminants from the hydraulic system,keeping the oil back to the tank clean.

Specifications:

Model:	Large Flow Rate Return Line Filter DRLF-A2600x30P
Dia(mm)	150
Flow(L/min)	2600
Filtration rate(μm)	1,3,5,10,20,30
Weight(kg)	202
Press(MPa)	1.6

Feature:

1.This filter can be installed on the top of the cover directly or installed with pipe.
2.It has indicator and by-pass valve.when the dirt accumulates in the element or the temperature of the system is too low,and the oil inlet pressure reaches 0.35MPa,the ineicator signals showing that the element should be cleaned,changed or raise the temperature.if no maintenance is done and the pressure reaches 0.4MPa,the by-pass valve will open.
3.the filter element is made of glass fiber,so it has high filtration accuracy,low initial pressure loss,high dirt-holding capacity and so on.

Specification:

Model	Flow Rate (I/min)	Filtration accuracy (μm)	Diameter (mm)	Press (MPa)	Press Loss (MPa)		Power	Weight (kg)	Quantities of Filter Element
					Initial	Max.
DRLF-A1300x*P	1300	1 3 5 10 20 30	100	1.6	0.1	0.35	24V/48W 220V/50W	140	1
DRLF-A2600x*P	2600		150					202	2
DRLF-A3900x*P	3900		200					225	3
DRLF-A6500x*P	6500		250					266	5
DRLF-A7800x*P	7800		250					287	6
DRLF-A9100x*P	9100		250					308	7
