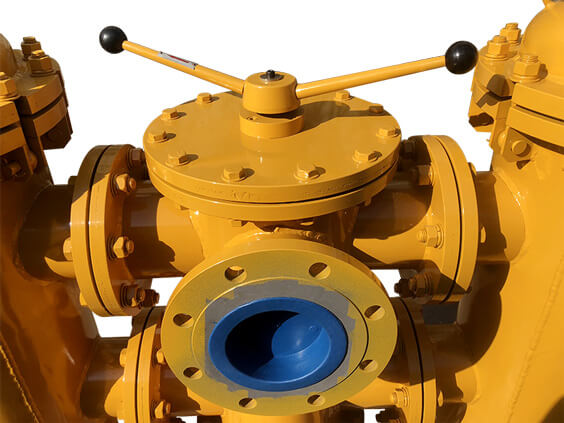

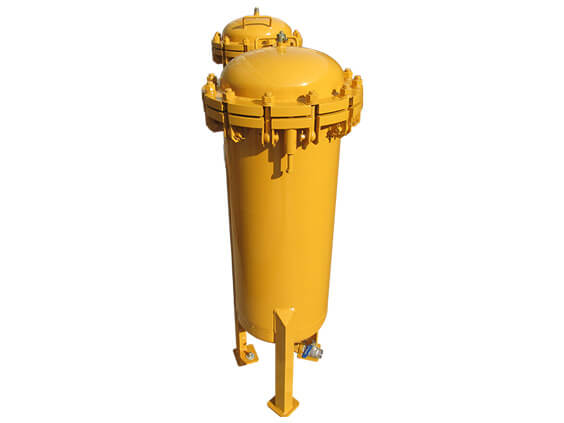

Duplex Lubrication Filter SLLF150x80YC

Model: SLLF150x80YC
Diameter(mm): 150
Filtration rate(μm): 80
Filter surface(㎡): 3.30
Weight(kg): 870
Description:

The SLLF150x80YC dual lubrication filter is made of high-quality materials, including a durable stainless steel casing and a filter element made of advanced filtering media. This ensures the durability and lifespan of the filtration system, enabling it to withstand harsh operating conditions and providing reliable protection for your machine. In addition, the filtration system adopts a compact design, which is easy to install and maintain.

Specifications:
Model
SLLF150x80YC
Filter surface(㎡)

3.30

Filtration rate(μm)
80
Diameter(mm)
150
Weight(kg)
870
Technical Data:


Model Flow Rate

(I/min)
Filtration accuracy
(μm)
Diameter
(mm)
Weight
(kg)
SLLF-32x*P 130 80 32 55
SLLF-40x*P 330 40 85
SLLF-50x*P 485 50 115
SLLF-65x*P 820 65 152
SLLF-80x*P 1320 80 480
SLLF-100x*P 1990 100 630
SLLF-150x*P 5000 150 870
SLLF-200x*P 9264 200 980
