Dehydration Oil Filtering Machine dehydrates by 2 kinds of filter elements. Coalescing filter will make the free and dissolved water from small molecule to big drop, then separation filter remove the water drop by gravity, falling into the water tank. It removes the particles by stages of filters and cleanness up to NAS grade 6.
Dehydration Oil Filtering Machine is applicable for on line running with light oil filled, turbine oil filled and lubricating oil filled systems, especially good for water- leakage systems.
Type |

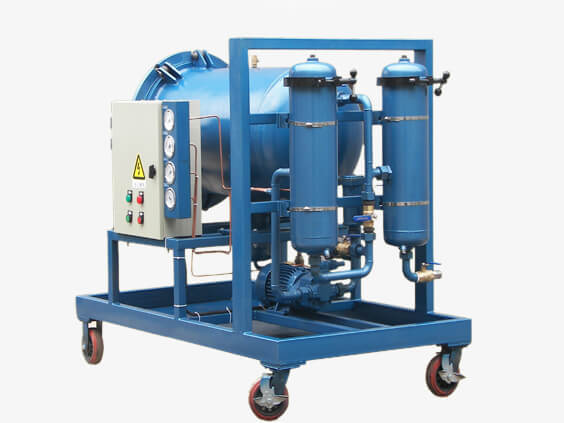

Coalescense Of Dehydrated Oil Purifier LYC-J Series |
Rated Voltage(MPa) |
0.6 |
Pre-precision (micron) |
100 |
Fine precision (micron) |
3,5,10,20 |
Power(V) |
AC380 |
Temperature (℃) |
25-80 |
Model No. | Rated Flow(L/min) | Motor Power (kw) | Weight(kg) | Dimensions (mm) |
LYC-J25 | 25 | 0.75 | 150 | 1200*800*1250 |
LYC-J50 | 50 | 1.1 | 200 | 1350*800*1400 |
LYC-J100 | 100 | 2.2 | 300 | 1740*980*1450 |
LYC-J150 | 150 | 4 | 520 | 1800*1000*1540 |
LYC-J200 | 200 | 5.5 | 860 | 1840*1050*1780 |
LYC-J400 | 400 | 13 | 2860 | 3180*1600*2000 |
