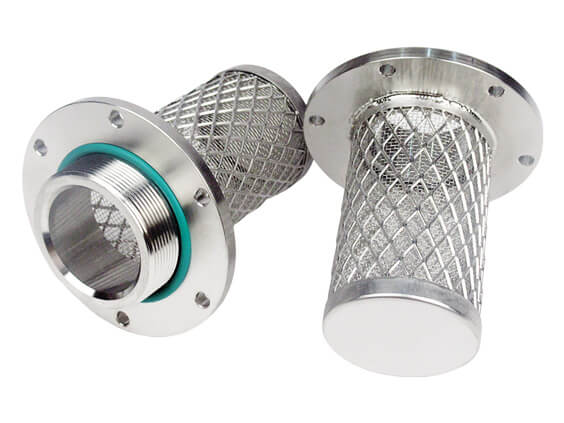

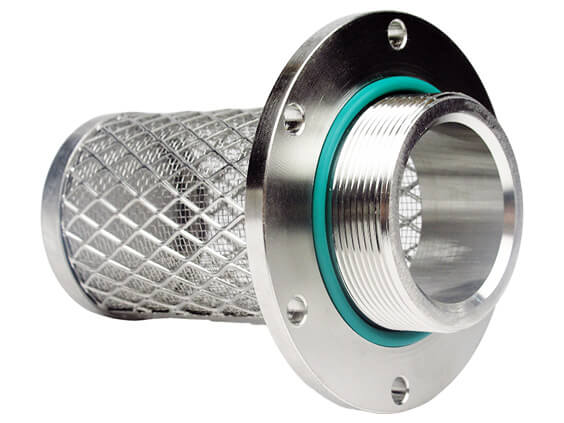

Flange 304 Stainless Steel Mesh Oil Filter,Stainless Steel Oil Filter Element,Custom 304 Stainless Steel Filter

Description:

The 304 stainless steel structure has corrosion resistance, ensuring that this oil filter can withstand harsh conditions and provide reliable performance in the coming years. Whether you want to replace your existing oil filter or upgrade to a more efficient option, our Flange 304 stainless steel mesh oil filter 82x100 is the perfect choice.

Specifications:

Type	Stainless Steel Oil Filter Element
Dimension	82x100
Filter layer	304 stainless steel mesh
End caps	Carbon steel
Filtration accuracy	1~25μm
Sealing ring	Viton

Features:

1. High strength corrosion resistance: Made of 304 stainless steel mesh with a chromium nickel content of ≥ 18%/8%, it can resist weak acids, weak bases, salt spray, and oxidation environments

2. Precision gradient filtering structure: Multi layer laser welding mesh design (such as 20 mesh → 50 mesh → 100 mesh gradient combination), achieving adjustable accuracy of 5-50 microns, interception efficiency ≥ 99.5% (ISO 16889 certification), while maintaining low pressure drop (<0.1MPa @ 25 ° C).

3. High temperature and high pressure resistance: Working temperature ranges from -50 ° C to 400 ° C, with an instantaneous pressure resistance of up to 10MPa (100 bar), supporting stable filtration of high viscosity oils (such as gear oil and hydraulic oil) under extreme working conditions, and a lifespan 5-8 times longer than paper filter cartridges.

4. 100% Reusable: Supports ultrasonic cleaning/backwashing, no filter material loss, porosity recovery rate ≥ 95%, adapts to the needs of circular economy, and reduces waste disposal costs by more than 60%.

Video:
