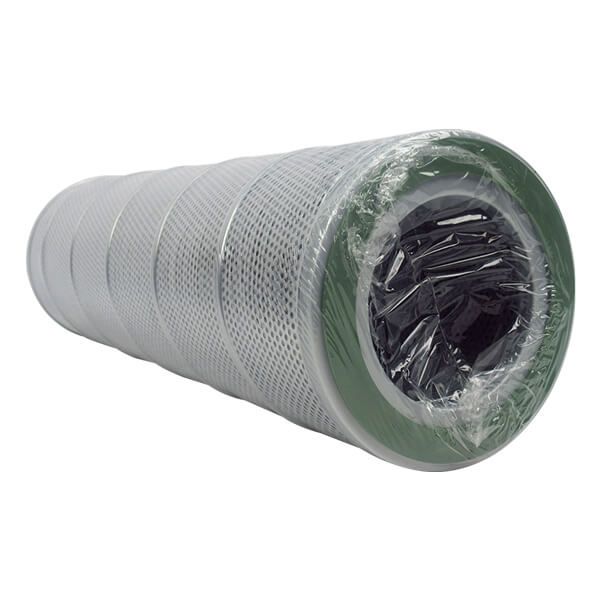

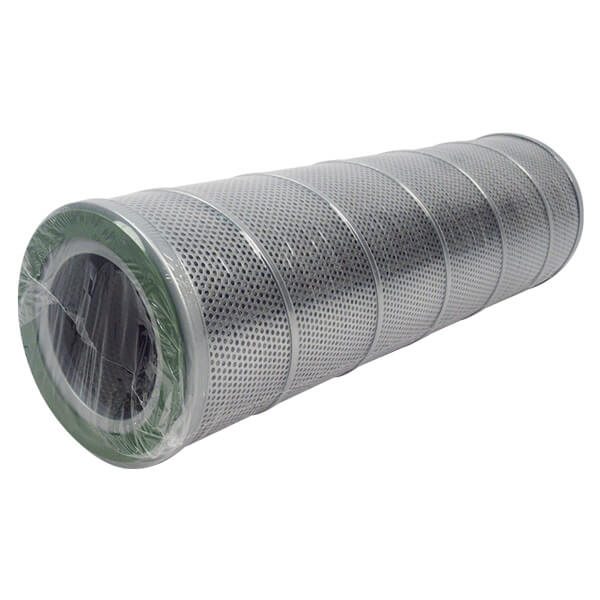

Hydraulic Oil Filter Element G4162-NJ

Type: Hydraulic oil filter element
Part number: G4162-NJ
Dimension:  Customized/Standard
Filter layer:  Stainless steel/Fiberglass
Package: Carton
Description:

This filter element is made of high-quality heavy-duty materials and is an important component of industrial machinery. This hydraulic oil filter is a durable and reliable replacement filter that can be easily installed, disassembled, and replaced, helping to improve system efficiency and performance, thereby increasing productivity and reducing operating costs.

Specifications:
Product Hydraulic oil filter element
Part number G4162-NJ
Dimension Standard/Customized
Filter layer Stainless steel/Fiberglass
Package Carton
Feature:

1.High hardness, stable structure, and not easily deformed
2. High pressure resistance, capable of accepting high working intensity
3. High temperature resistance, able to withstand working temperatures of around 480 degrees Celsius
4. Corrosion resistance, with anti-corrosion function and good wear resistance

Video:




Maintenance Methods :

    1. Before replacing, drain the original hydraulic oil, check the return oil filter element, suction oil filter element, and pilot filter element to see if there are iron, copper, or other impurities attached. If there are any, there may be hydraulic component faults. After troubleshooting, clean the system.
    2. When changing hydraulic oil, all hydraulic oil filter elements (return oil filter element, suction oil filter element, pilot filter element) must be replaced at the same time, otherwise it is equivalent to not being replaced.
    3. Identify the hydraulic oil grade. Different grades and brands of hydraulic oil should not be mixed, which may react and deteriorate to produce flocculent substances. It is recommended to use the designated oil for this excavator.
    4. Before refueling, it is necessary to install the oil suction filter element. The pipe mouth covered by the oil suction filter element directly leads to the main pump. If impurities enter, it will accelerate the wear of the main pump, and if it is severe, it will start the pump.
    5. Add oil to the standard position. Generally, there is an oil level gauge on the hydraulic oil tank. Check the level gauge. Pay attention to the parking method, generally all cylinders are fully retracted, that is, the forearm and bucket are fully extended and landed.
    6. After refueling, be sure to exhaust the air from the main pump. Otherwise, there may be temporary inactivity of the entire vehicle, abnormal noise (air explosion) from the main pump, or damage to the main pump due to air pockets. The air exhaust method is to directly loosen the pipe joint at the top of the main pump and fill it up.
