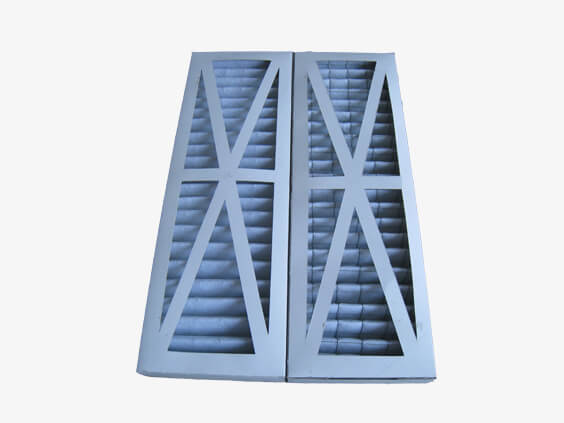

The Panel Pleat Filter is recognized worldwide as the most proven and reliable high technology air filter one the market. Our Panel Pleated Air Filter technology has proven to be cost effective and high efficient in removing a wide variety of contaminants from the air stream in industrial, medical, office and original equipment applications.
Product | Panel Air Filter |
Media | Synthetic Fiber |
Frame | Paper |
Grade | F5,F6,F7,F8 |
Filter Size | Custom Made |
1. The general air conditioning system primary protection filter and air filter,
2. High performance filter before filtration, prolongs the service life of high performance filter,
3. Factory exhaust, industrial processing dust air treatment system
Efficiency Class | Length (mm) |
Width (mm) |
Thickness (mm) |
Filter area (m2) |
F5 | 594 | 594 | 95 | 2.66 |
594 | 289 | 95 | 1.30 | |
594 | 492 | 95 | 2.20 | |
492 | 492 | 95 | 1.82 | |
492 | 391 | 95 | 1.45 | |
619 | 492 | 95 | 2.30 | |
619 | 919 | 95 | 2.90 | |
594 | 594 | 45 | 1.75 | |
594 | 289 | 45 | 0.85 | |
594 | 495 | 45 | 1.46 | |
495 | 445 | 45 | 1.31 | |
495 | 495 | 45 | 1.21 | |
495 | 445 | 45 | 1.09 | |
495 | 394 | 45 | 0.97 | |
495 | 289 | 45 | 0.74 | |
622 | 495 | 45 | 1.52 | |
622 | 445 | 45 | 1.37 | |
622 | 394 | 45 | 1.18 | |
597 | 597 | 22 | 0.88 | |
597 | 292 | 22 | 0.43 | |
597 | 495 | 22 | 0.74 | |
495 | 495 | 22 | 0.60 | |
495 | 394 | 22 | 0.48 | |
622 | 495 | 22 | 0.76 | |
622 | 394 | 22 | 0.61 |
