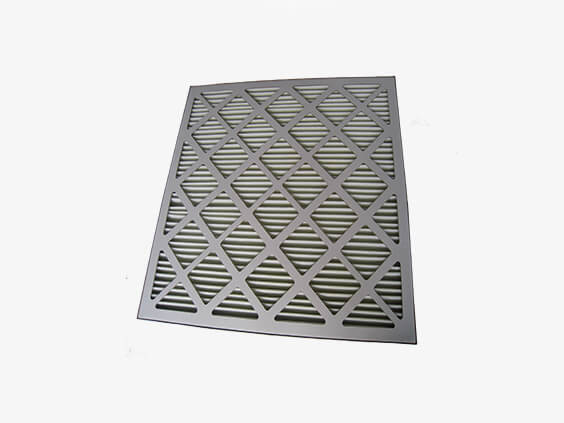

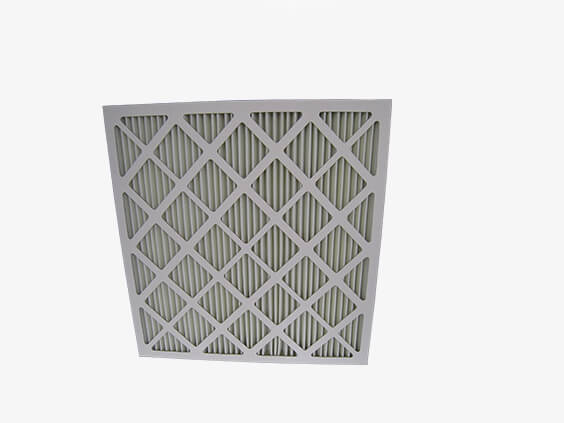

The Pleated Panel Filter has been setting the standard for G3 Panels for a long time. The combination of the media, cardboard and pleated technology makes the Panel Air Filter a low energy. And it performs well in all situations.
Product | G3 Panel Air Filter |
Media | Synthetic Fiber |
Frame | Paper |
Grade | G1,G2,G3 |
Filter Size | Custom Made |
1. The general air conditioning system primary protection filter and air filter,
2. High performance filter before filtration, prolongs the service life of high performance filter,
3. Factory exhaust, industrial processing dust air treatment system
Model | Outside dimensions(mm) | Thickness(mm) | Rated air flow(m3/h) | Efficiency (%) | Material | |
ZS-CBAW-1 | 595x595 | 21/46 | 2000-3200 | G3 G4 | Media | Non-woven fabric |
ZS-CBAW-2 | 595x295 | 21/46 | 1000-1500 | Frame | Aluminum alloy / zinc galvanized | |
ZS-CBAW-3 | 595X495 | 21/46 | 1500-2500 | Frame work | Common steel wire/ stainless steel wire | |
ZS-CBAW-4 | 900x495 | 21/46 | 3000-5000 | metal mesh | Zinc Galvanized Steel /Aluminum alloy |
