  1. /d/pic/air-filter/hydroponic-carbon-filter-01.jpg

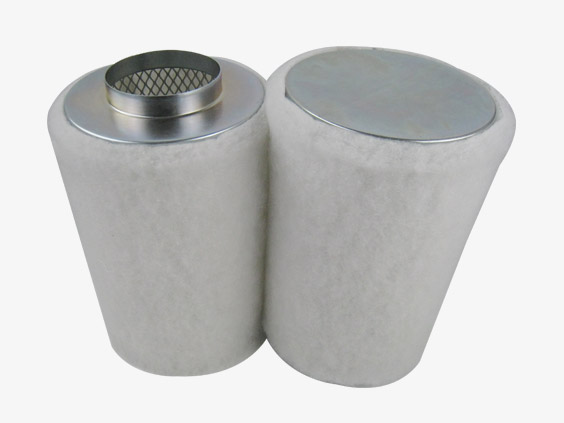

Hydroponic Carbon Filter

Filtering material: coconut activate charcoal and granular activated carbon from coal
choice: 0.5-1mm,1-2mm,2-4mmm
The cartridge’s material: generally carbon steel
The out coating material: spongia, it could separate bigger particles from dust .
Description:

The Hydroponic Carbon Filter has a good adsorption, can effectively remove residual chlorine, odor ,color and organic matter.

Specifications:

Filtering material: coconut activate charcoal and granular activated carbon from coal . We usually use coconut activate charcoal ,and the particle about 1-2mm.There are some specifications for your choice:0.5-1mm,1-2mm,2-4mmm,4-6mm,8-16mm.Generally, the activated carbon particles is smaller, the larger the filtering area. Therefore, the powdered activated carbon could reach the largest area, the adsorption is the best , but it is difficult to control , so rarely used.

The cartridge’s material: generally carbon steel ,also could be made by stainless steel to meet your requirements .

The out coating material: spongia, it could separate bigger particles from dust .

Application:

Suitable for industrial and mining enterprises, workshops, warehouses and other places for summer cooling, ventilation or for general industrial pipeline pressure, air supply, exhaust and roof ventilation. (Europe and North America plant tent exhaust) Sun tent exhaust.

Options:
No.



Connection
(mm)



Out diameter
(mm)



Height
(mm)



Thickness
(mm)



01 100 180 150 30
02 100 180 300 30
03 125 205 150 30
04 125 205 300 30
05 150 240 300 35
06 150 240 600 35
07 150 240 1000 35
08 200 290 300 35
09 200 290 600 35
10 200 290 1000 35
11 250 340 600 35
12 250 340 1000 35
13 315 405 600 35
14 315 405 1000 35
15 350 440 1200 35
